Fast pre- and fine- grinding in one instrument

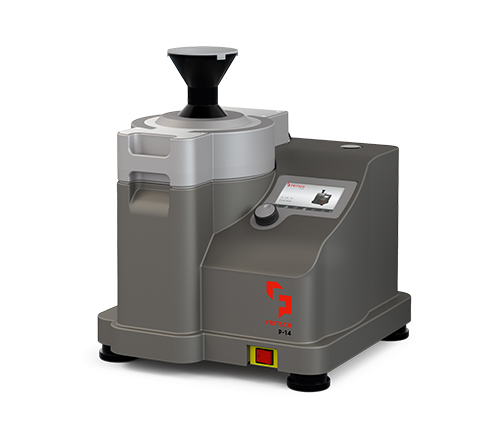

The FRITSCH rotor mill P-14 offers impact, shearing and cutting comminution in one instrument – with a higher performance, better cooling and is significantly quieter than comparable instruments. Its powerful motor is ideal for the particularly fast comminution of soft to medium-hard, brittle as well as fibrous materials and temperature-sensitive samples with an extremely fast sample throughput, which can be further increased by using the FRITSCH Cyclone separators.
Due to its high performance, the P-14 is the ideal rotor mill for comminution at pilot plant-scale in the plastics industry. Alternatively, the P-14 rotor mill can be used in the following fields; analytic, biology, chemistry, , foodstuffs, plastics and textiles, pharmaceutical, agriculture and forestry.
Two Mills in one instrument: With the cutting rotor you turn the P-14 into a cutting mill for fast, efficient pre- and fine comminution of soft to hard-tough, fibrous materials and plastics.
Features :
- Powerful grinding with 24,000 rpm for fast sample throughput
- Extremely high impact speed of the impact rotor (121,0 m/s = 438,84 km/h)
- Max. feed size < 15 mm, sample throughput of up to 15 l/h and more
- Final fineness < 40 μm, sieve rings 0.08 – 6 mm
- Multifunctional with impact or cutting rotor in one instrument
- Samples which are difficult to grind or extremely temperature-sensitive can be embrittled with the addition of liquid nitrogen and subsequently ground
- Intelligence-Safety-Control-System for particularly safe operation
- Batchwise or continuous grinding with FRITSCH cyclone separators
- Patented cooling of grinding parts
- Temperature sensor and extremely high airflow = perfect cooling of samples
- Easy cleaning due to Clean Design
- Removable dust filter for convenient cleaning
- Wear-free labyrinth seal between the grinding chamber and drive motor
- Quiet operation according to DIN EN – Flexible remote control
- USB interface as well as integrated regulation for the Vibratory Feeder LABORETTE 24
- Grinding chamber made of stainless steel 303 resp. 316L PTFE coated
- Grinding parts made of stainless steel 431 resp. 316L, pure titanium, hardmetal tungsten carbide or zirconium oxide
