Lyovapor Freeze Dryer range offers infinite control and technology and includes models like the Lyovapor L-200 and L-250, offering high-quality freeze drying capabilities with specific features such as a maximum condenser temperature of -55°C (for L-200) or -105°C (for L-250), automation, and a capacity of 6 kg or 4.5 L, respectively. The Lyovapor L-200 also features heatable shelves and offers a modular drying chamber, while the Lyovapor L-250 is a benchtop model with a different temperature range.

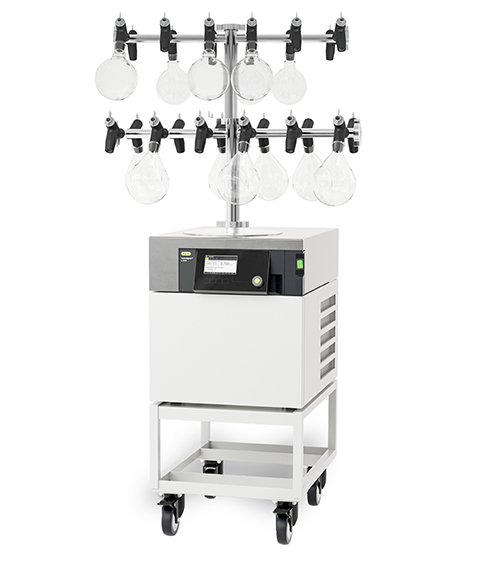

L-200 Classic
The L-200 Classic offers a solution for those looking to process API sample in bulk application. It Facilitates manifold applications with varying quantities and accommodates different drying flasks such as round bottom flasks, vials. Ampoules etc.
Features and Benefits:
- Deposition rate power is 0.25 L/hr which is higher with the Lyovapor L-200.
- Scroll dry vacuum pump allows the use of organic solvents with the Lyovapor L-200.
- Upgrading is possible at any point in time.
- Compressor power and displacement capacity are higher; this allows efficient trapping of water vapours.
- The ice condenser temperature and vacuum will be more stable
- Faster recovery after sample loading
- 55 years of experience in laboratory evaporation.
- Remote monitoring to observe the slow freeze-drying process.

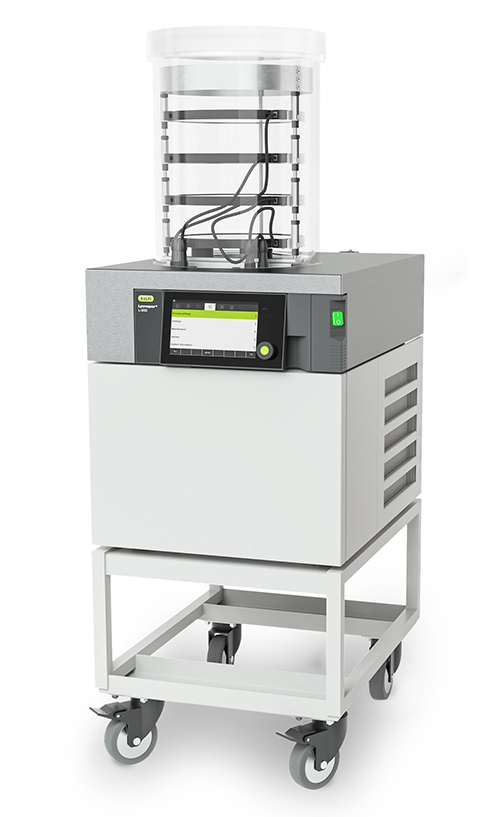

L-200 Pro Control
The L-200 Pro presents a solution for individuals seeking to handle their samples in trays, petri dishes, and vials, complete with heated options. It enables the execution of an automated method program, incorporating a sample protection state to prevent the unintended melting of sample, especially for unknown substances
Features and Benefits:
- Deposition rate power is 0.25 L/h which is higher with the Lyovapor L-200.
- Scroll dry vacuum pump allows the use of organic solvents with the Lyovapor L-200 instrument.
- Compressor motor power and displacement capacity are higher; this gives efficient trapping of water vapours.
- The ice condenser temperature and vacuum will be more stable.
- A stronger ice condenser of the Lyovapor L-200 allows faster recovery after sample attachment and therefore faster drying.
- Continuous monitoring with the use of the Lyovapor App and Software.
- Easy upgrading is possible at any point in time.
- 55 years of service in laboratory evaporation.

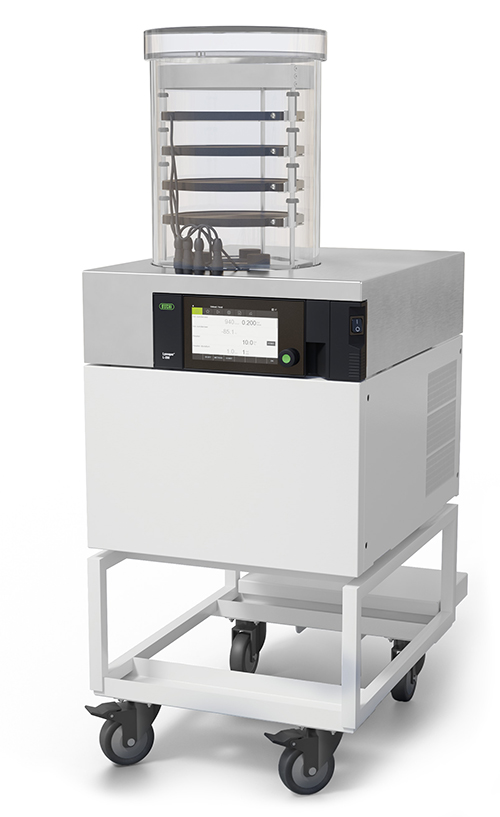

L-250 Pro Control
Users of the L-250 instruments can take advantage of the low-temperature ice condenser trapping facility, allowing for the use of a limited concentration of organic solvent. The instrument also includes endpoint determination for cycle optimization.
Features and Benefits:
- The utilization of a single compressor in the L-250 model contributes to lower power consumption
- The compressor operates on a variable speed concept, adjusting its speed according to the load, resulting in reduced power consumption.
- The Manifold application allows for endpoint determination.
- The L-250 model enables the use of low-temperature organic solvents with the Scroll dry vacuum pump.
- Upgrading is feasible at any given point in time.
- The recovery time after sample loading is faster
- 55 years of experience in laboratory evaporation.
- Remote monitoring to observe the slow freeze-drying process.

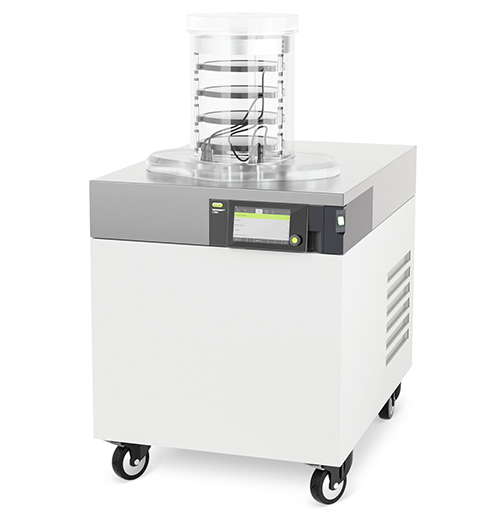

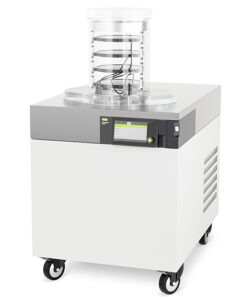

L-300 Continuous
This instrument ‘s ultra-low condenser allows users to employ a range of organic solvents seamlessly. Multiple users can run their samples continuously without the need to interrupt the instrument for defrosting/cleaning. Additionally, the instrument offers a solution for endpoint determination, contributing to cycle optimization.
Features and Benefits:
- Deposition rate power is higher of 0.50 L/h.
- The standard Scroll dry vacuum pump allows the use of organic solvents.
- The change of condensers in the L-300 will provide a fresh condenser every 2 hours. This will lead to a faster process and more stable pressure.
- Many organic solvents can be processed due to condenser temperature of -105°C.
- Easy upgrade from basic to pro is possible at any point in time.
- Compressor motor power and displacement capacity is higher; this allows efficient trapping of water vapours.
- Water cooling allows to operate the instrument stably at environmental temperatures of 25°C – 30°C.
- 55 years of service in laboratory evaporation.
Continuous monitoring with the use of the Lyovapor App and Software.
Download the product brochure here
